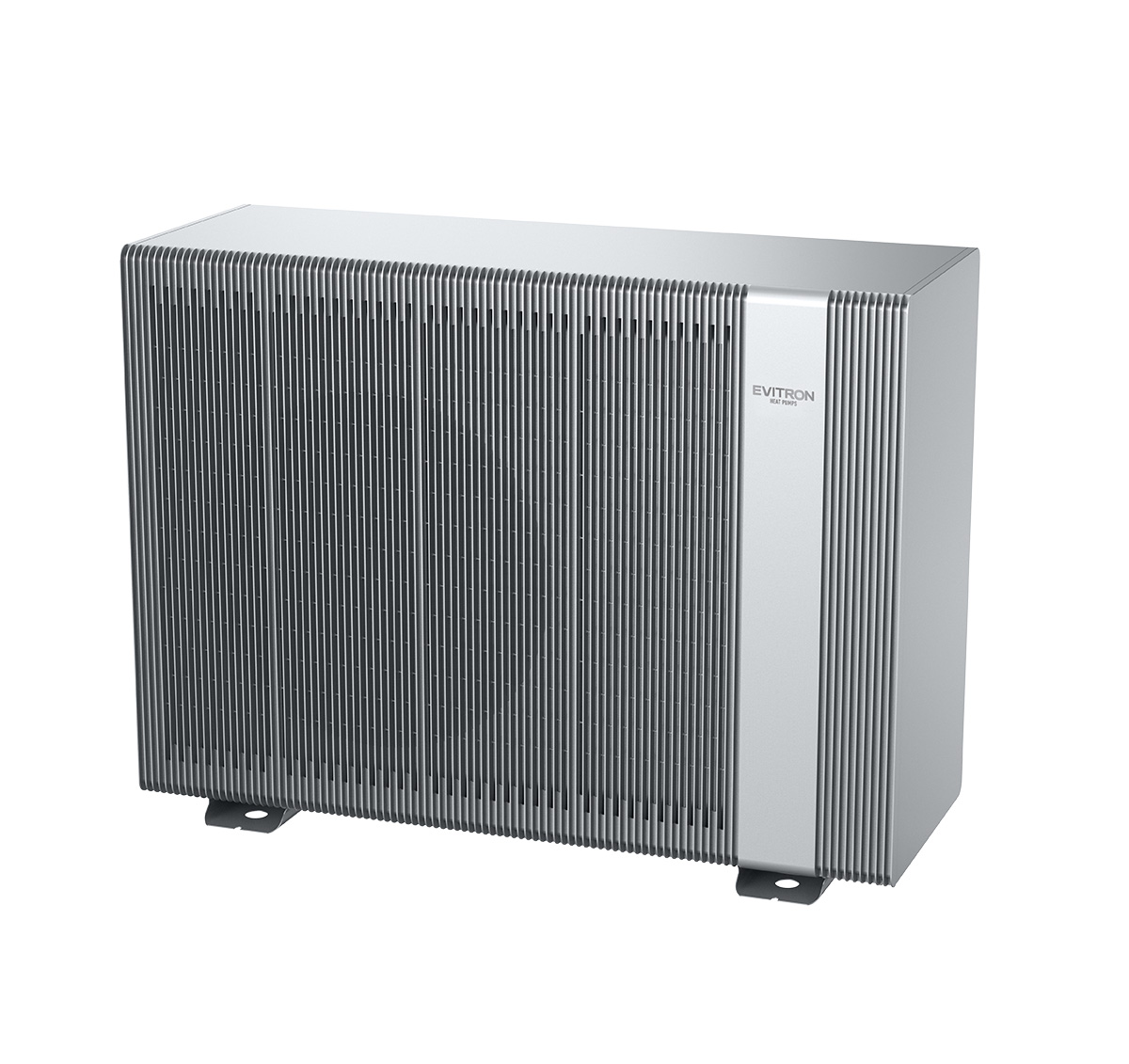

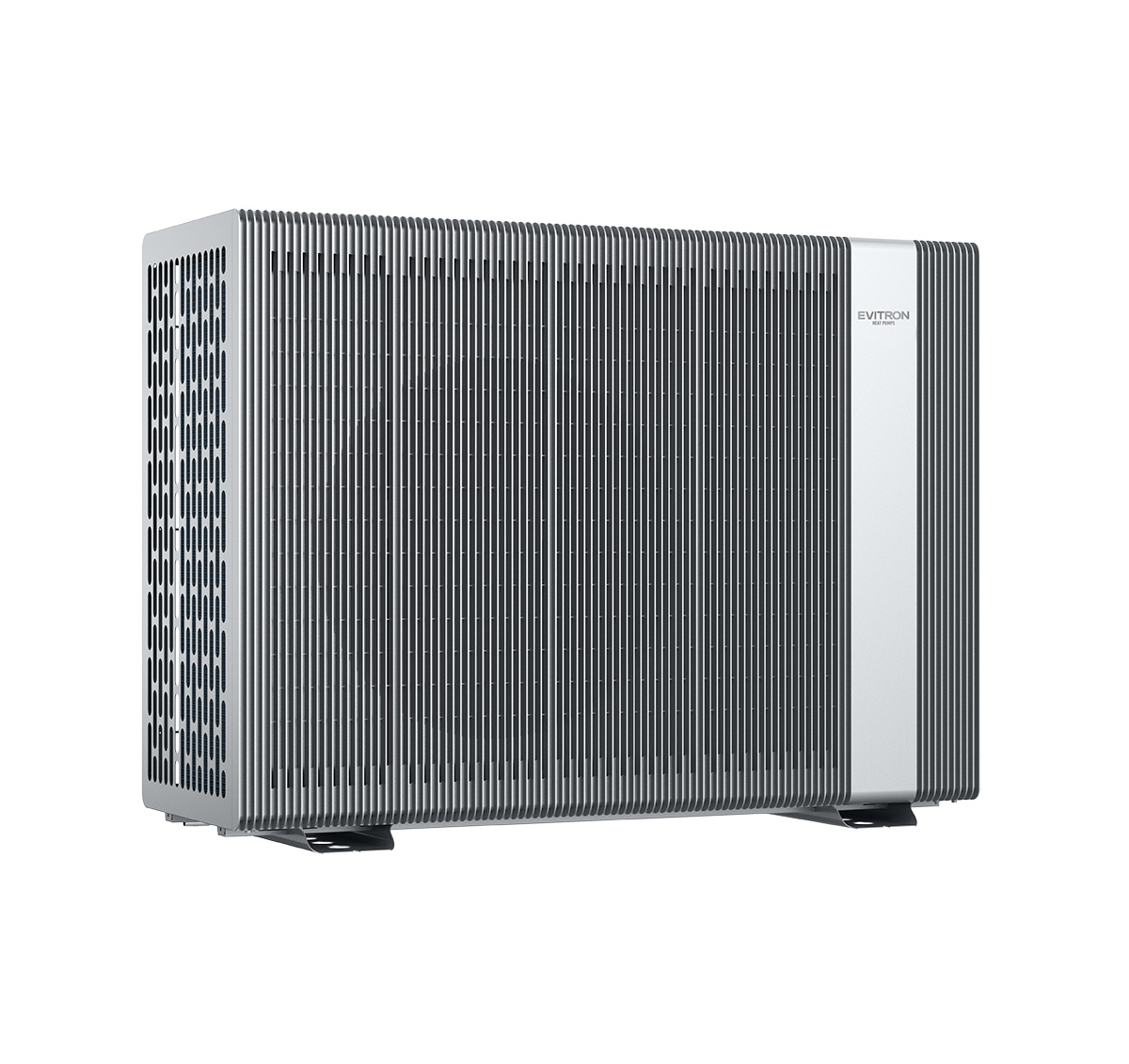

Soundwave Series – Low noise R290 Inverter Heating & Cooling Heat Pump

The Soundwave Series can meet highest class A+++, providing our customers the best eco-friendly performance for the heat pump system. With enchanced capabilities such as multiple noise reduction measures, multiple safety measures and defrost capability, it is a solution that optimizes efficiency and reduces energy consumption. In other words an affordable sustainable heating solution.

Category: Product ID: 26781

Description





● High Efficiency A+++
Eco-friendly

The Soundwave Series can meet the highest class A+++, providing our customers with the best eco-friendly
performance for the heat pump system.

  • R290 Natural Refrigerant
    Low GWP and low carbon life

Using the natural refrigerant R290 (with a GWP of only 3), the Soundwave Series heat pump has a minimal
impact on global warming and zero harm to the ozone layer, making it the best choice for the low-carbon heating
system. Designed to optimize efficiency and reduce energy consumption, this heat pump provides customers
with affordable sustainable heating solutions.

● Quiet Operation
No noise to disturb the neighbours

Through effective noise reduction solutions, the Soundwave Series ensures a sound pressure level of 38dB(A) at 1m
and 26dB(A) at 3m, lower than the sound in a library. You’ll barely notice it’s working, so your neighbours
won’t be disturbed by the noise.

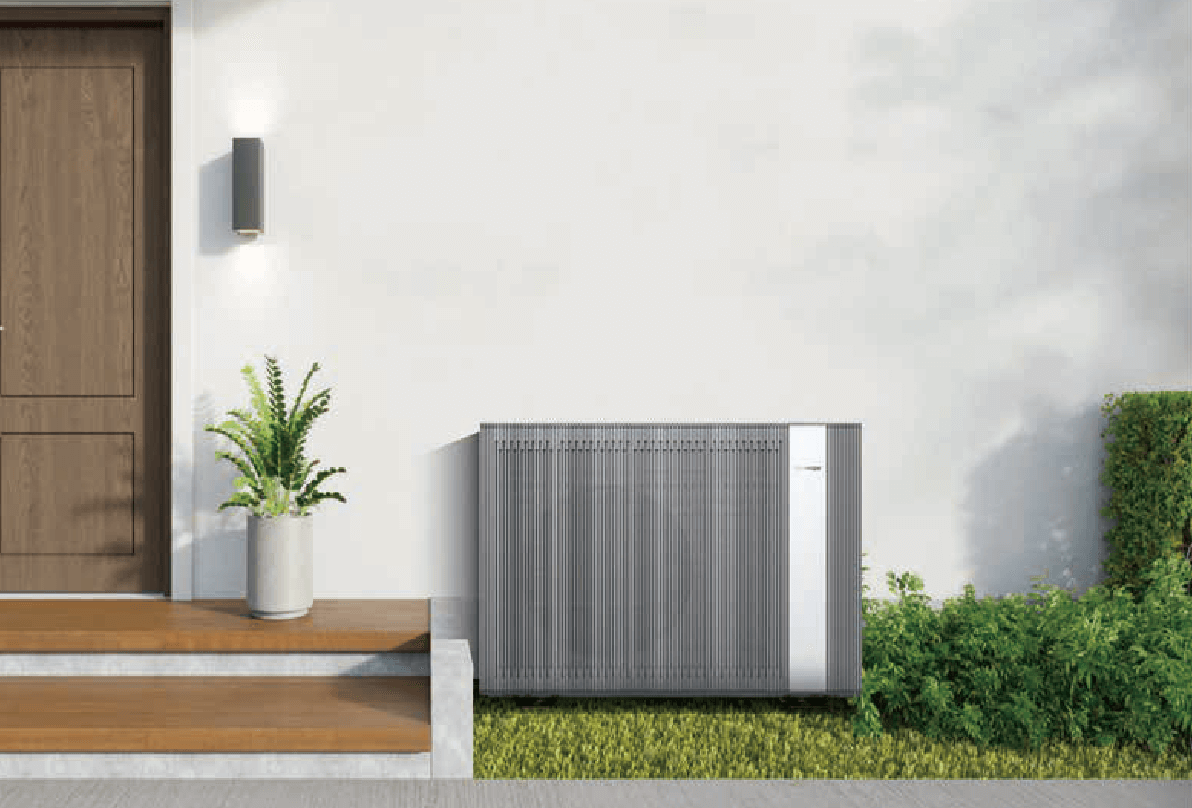

● Aesthetic Appearance Design
Decorate your home

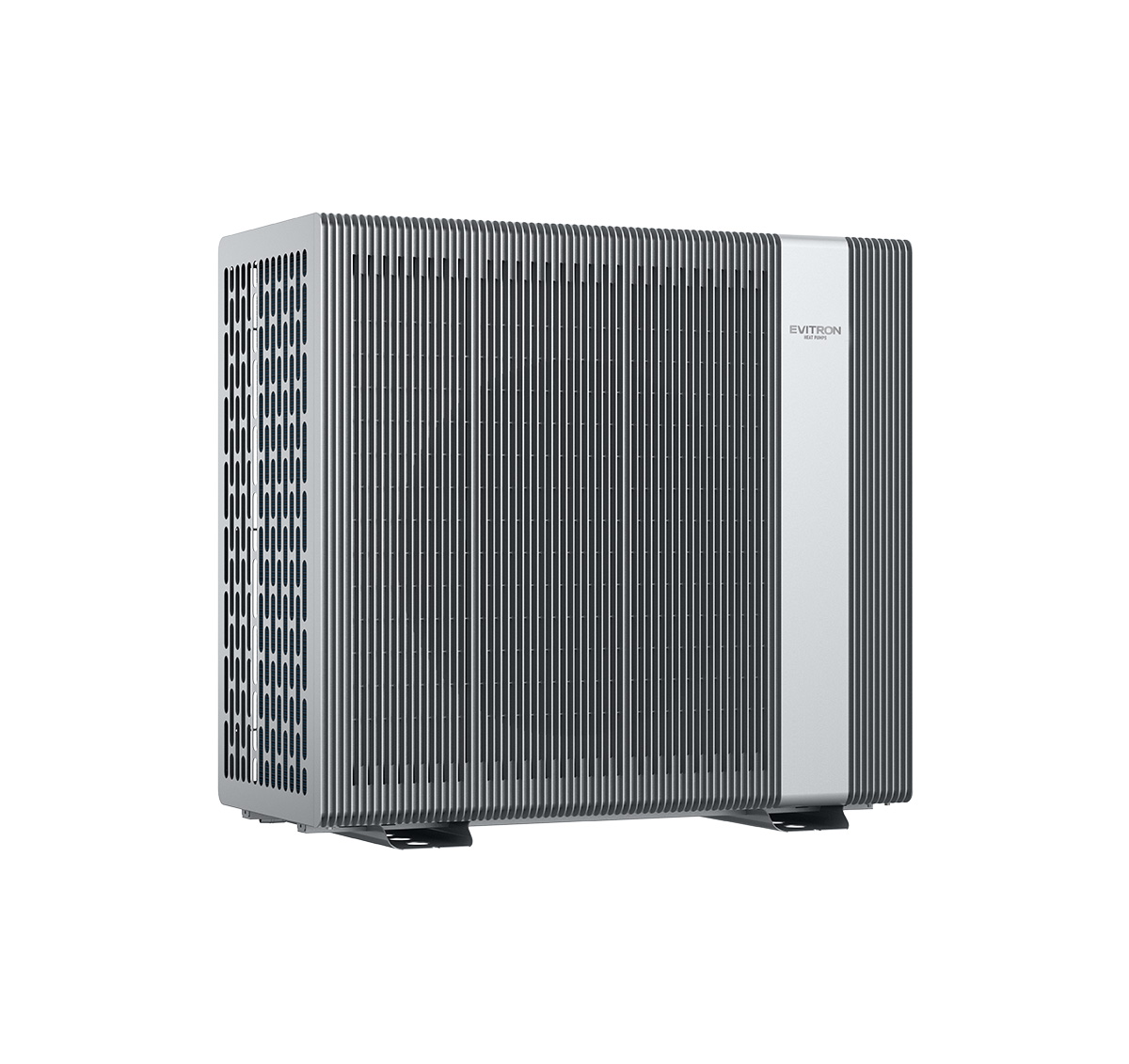

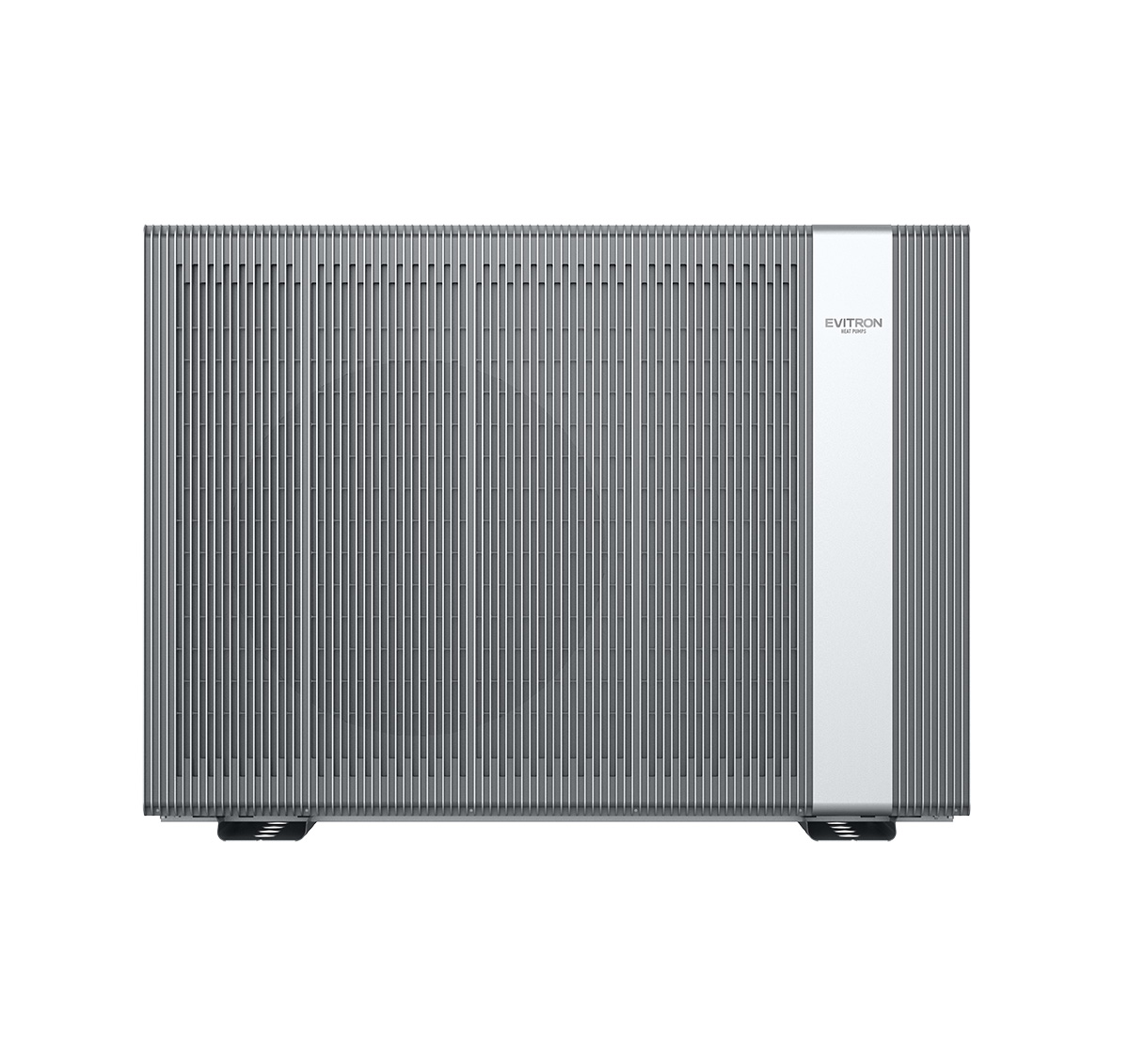

With its chic metallic grey finish and sleek lines, the Soundwave Series heat pump effortlessly complements
a variety of home styles, from modern apartments to quaint cottages, brick homes and traditional villas.
Its stylish design seamlessly enhances the ambience and effortlessly blends in to aesthetically enhance your space.

● Integrated Solution
Efficient installation and flexible connectivity

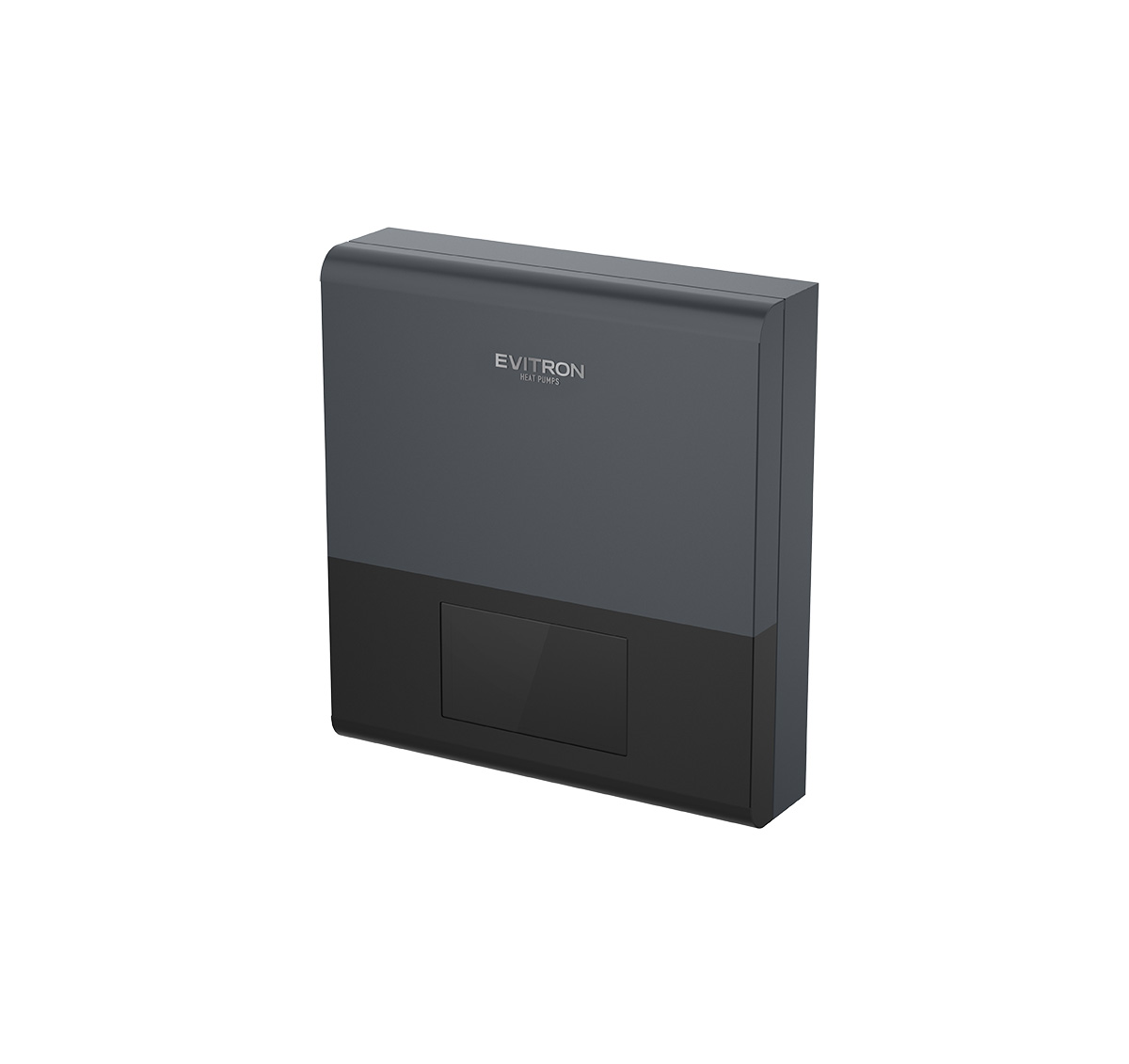

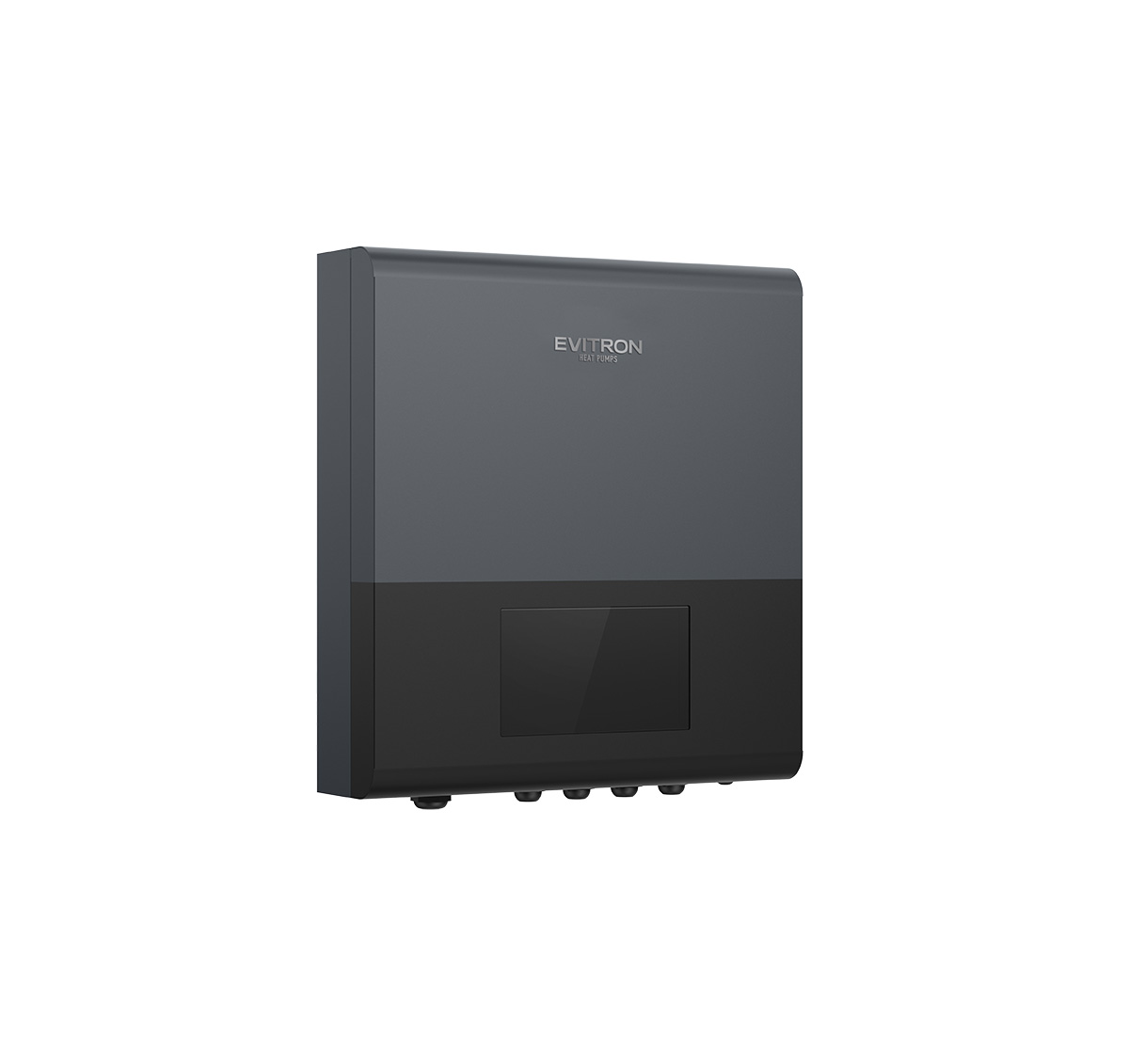

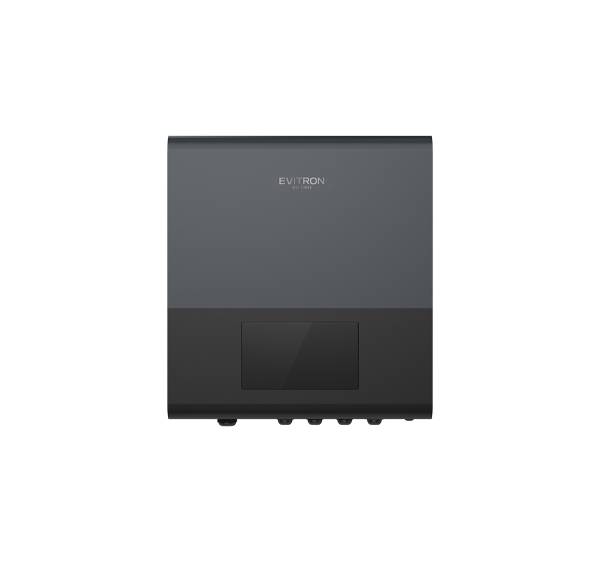

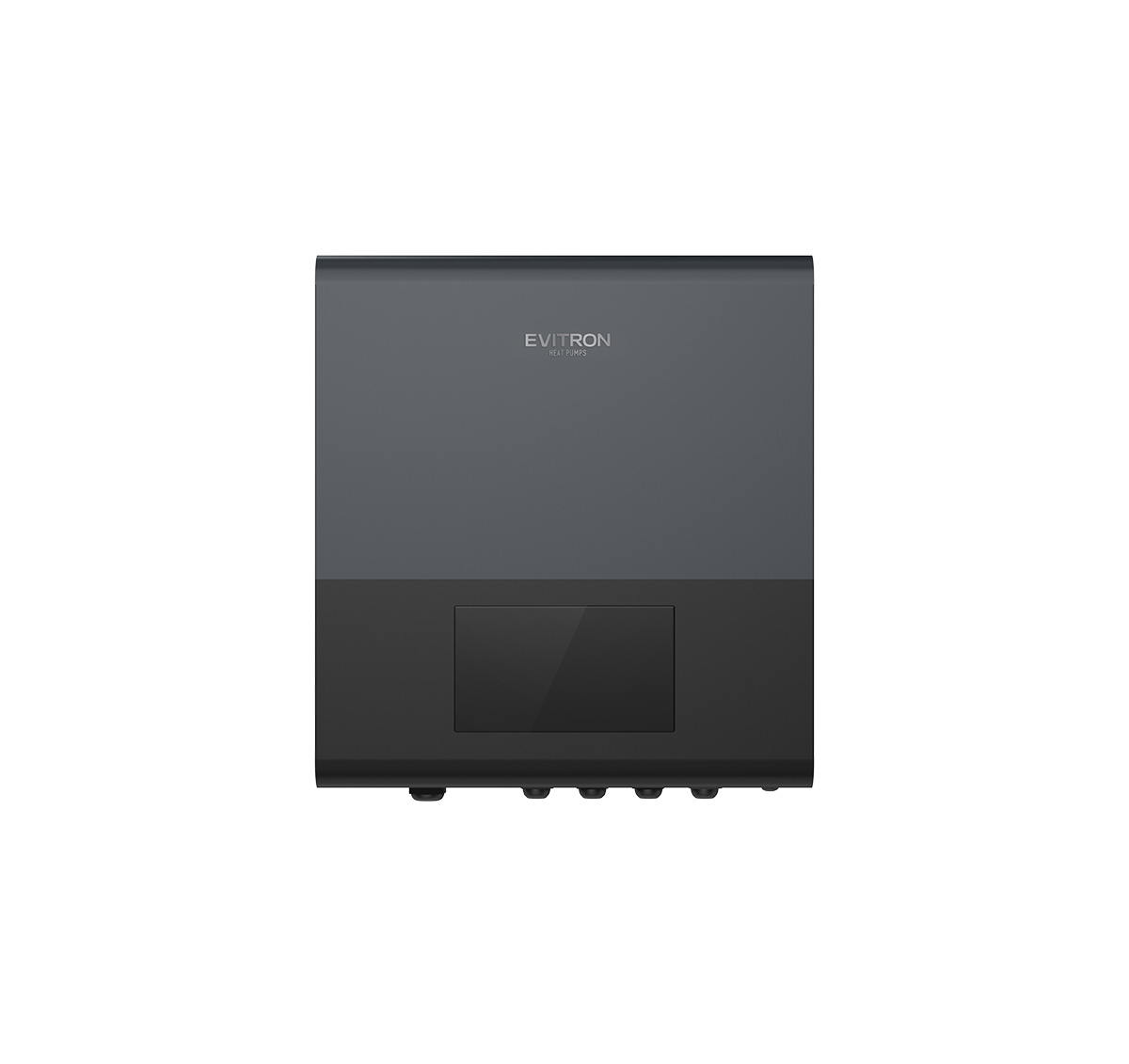

The Soundwave Series monobloc heat pump integrates a control system and hydronic module into one indoor box,
simplifying the piping to increase the installation efficiency. Such design will offer flexible connectivity for retrofitting old houses with original water piping, or new apartments

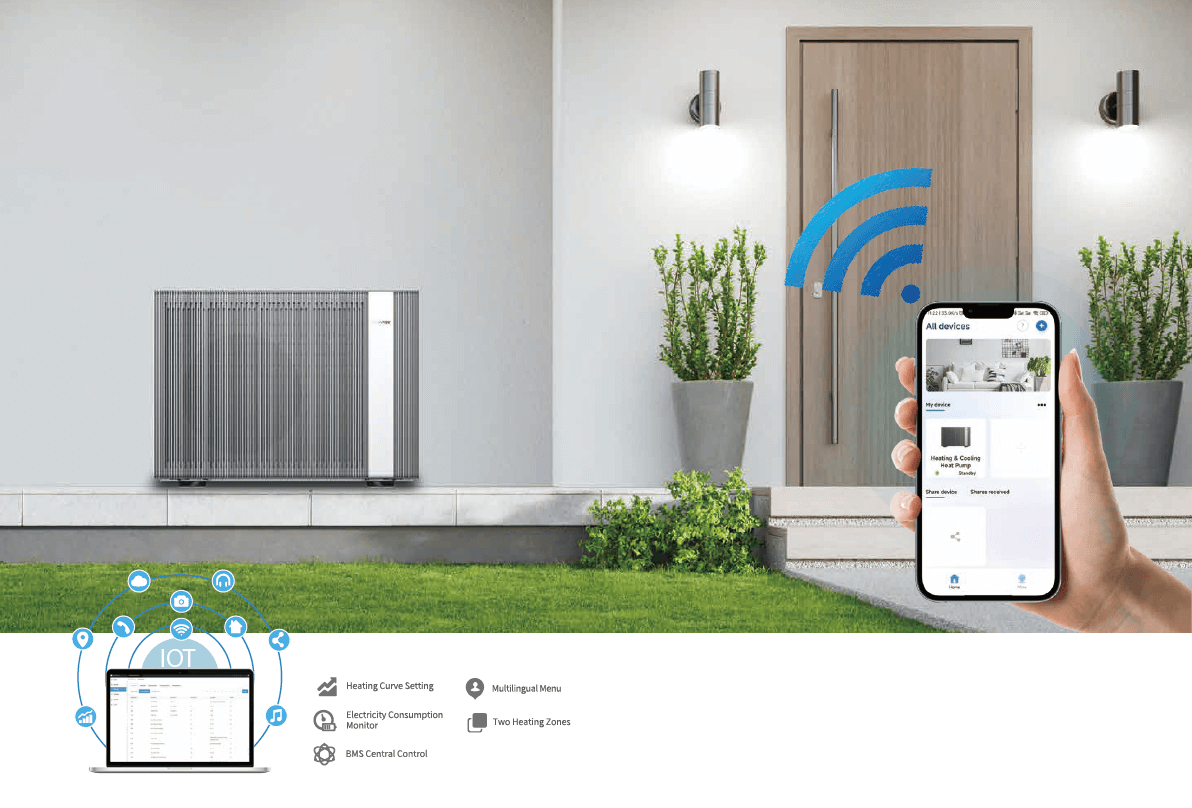

● Easy Remote Control and Management
WIFI, APP & IoT

Use the built-in Wi-Fi connectivity, Eco-Home app and IoT technology to effortlessly manage and
control your heat pump from anywhere, ensuring personalized comfort tailored to your preferences.

● Key Upgrades
Better Performance

● Featured Functions
Enhanced Capabilities

Parameters

Model: NE-FWH-SW06ME5WH-SW09ME5WH-SW13ME5WH-SW13ME8WH-SW16ME8
Prated Average Climate 35°/55°C (kW)4.8/4.86.8/6.810/1010/1012.8/12.8
ErP Level (35°C)A+++
ErP Level (55°C)A++
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C.
Heating Capacity (kW)2.00~6.033.50~9.044.20~13.044.20~13.046~16.44
Power Input (kW)0.34~1.270.60~1.980.72~2.840.72~2.841.01~3.65
COP5.88~4.755.83~4.575.86~4.595.86~4.595.93~4.52
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C.
Heating Capacity (kW)1.82~6.053.15~9.033.7~12.953.7~12.955.16~16.04
Power Input (kW)0.46~1.920.81~3.010.96~4.350.96~4.351.33~5.11
COP3.96~3.153.89~3.003.85~3.023.85~3.023.88~3.14
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.
Cooling Capacity (kW)1.47~4.912.33~6.963.27~9.133.27~9.134.32~11.8
Power Input (kW)0.34~1.600.54~2.230.75~2.990.75~2.990.98~3.78
EER4.32~3.074.31~3.124.34~3.064.34~3.064.38~3.12
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.
Heating Capacity (kW)6.619.3313.4513.4516.60
Power Input (kW)1.522.143.113.113.82
COP4.354.354.324.324.35
Max. Power Input (kW)2.84.55.45.45.8
Max. Running Current (A)14.319.822.222.222.2
Max. Outlet Water Temp. (°C)75
Operation Range (°C)-25~43
Power Supply220-240V~/ 50Hz 380-415V/3N~/ 50Hz
Rated Water Flow (m³/h)1.031.552.202.202.75
Compressor BrandMitsubishi
Circulating Pump BrandWilo
CO2 Equivalent (Ton)0.00230.00270.00320.00320.0038
Refrigerant TypeR290
Sound Pressure Level dB(A) at 1m3842444446
Water Pipe Connection (inch)G1 1/4″
Water Proof ClassIPX4
Electricity Shock ProofI
Net Dimensions (L×W×H) (mm)1102×557×1021 1377×557×1021
