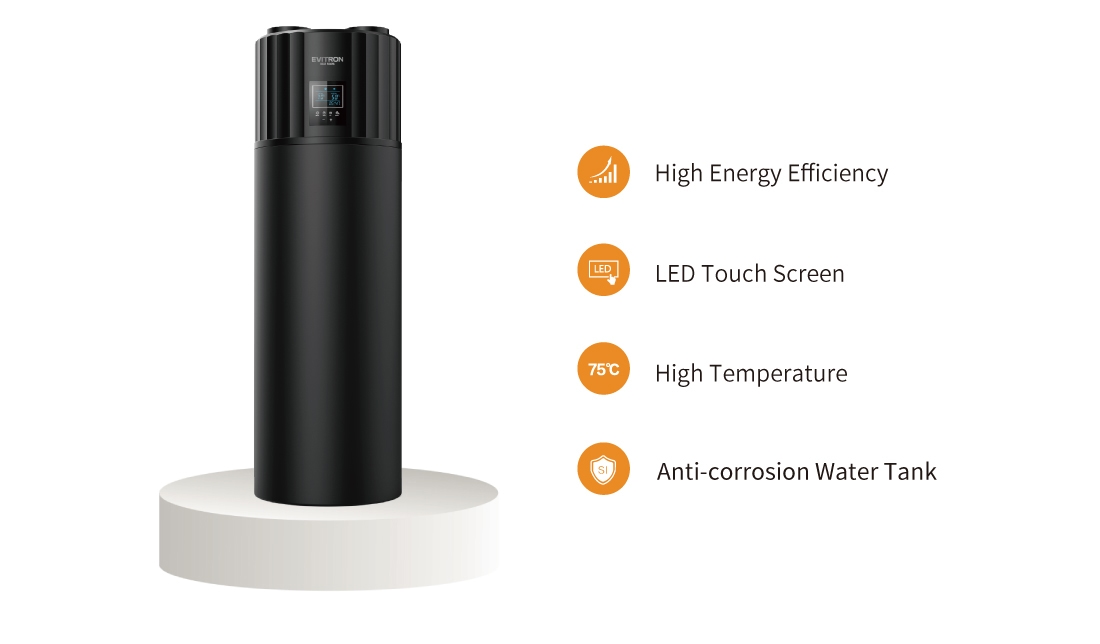

The vertical inlet & outlet airflow design makes the unit installable in small spaces, giving customers more freedom to choose where to assemble it at home. The top ErP rating of A+ indicates high efficiency and cost-saving for domestic hot water production.

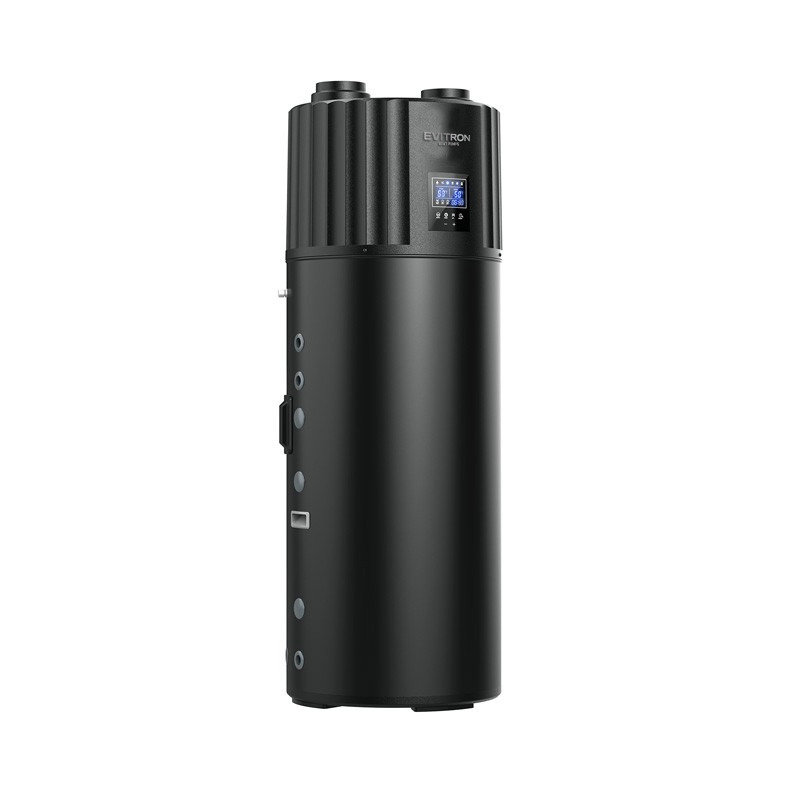

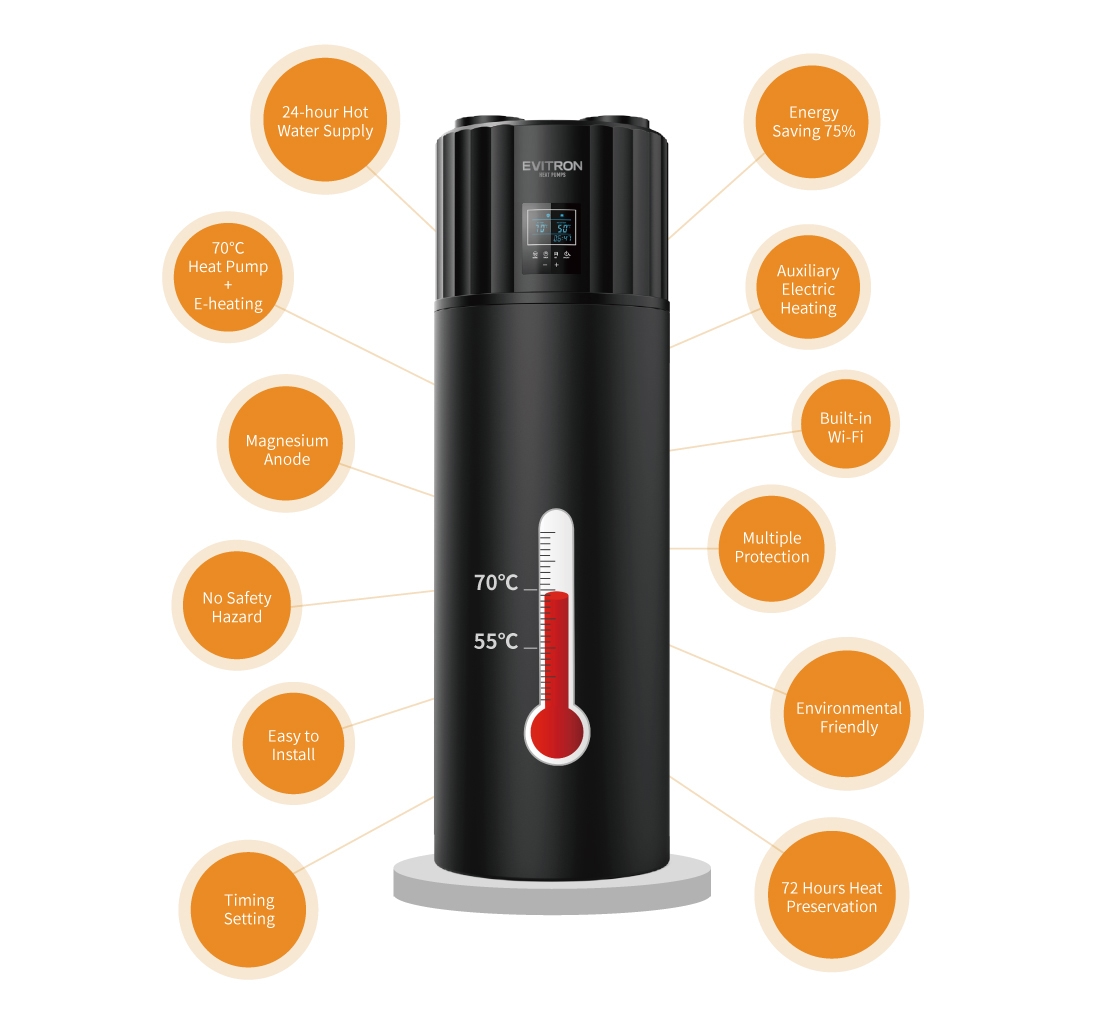

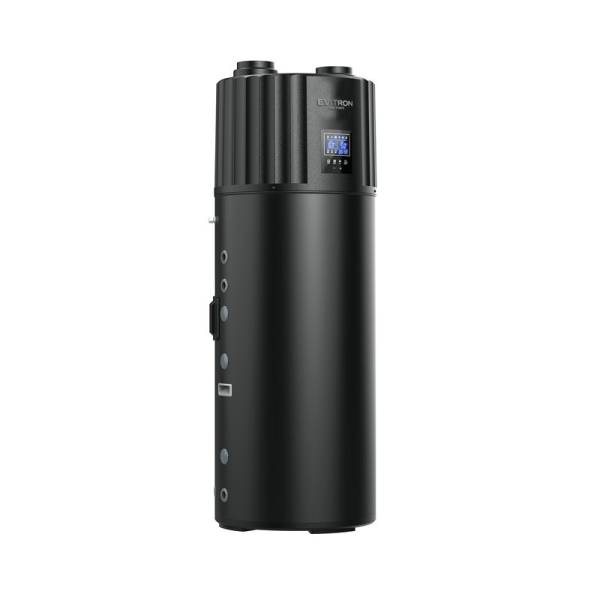

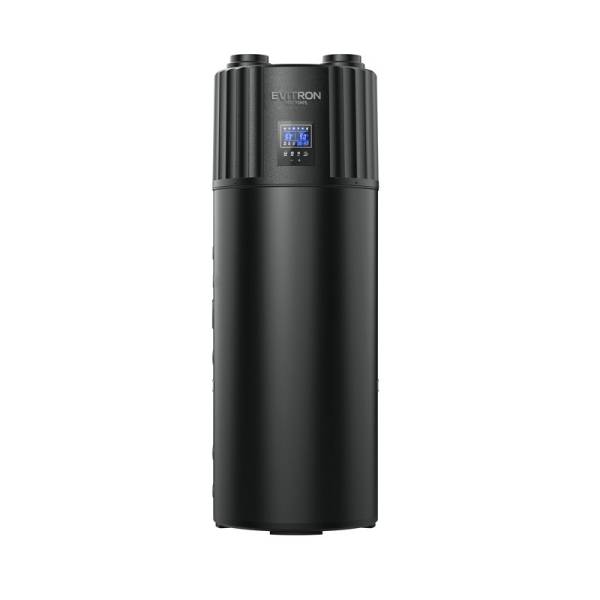

The Hotshot Series heat pump water heater is designed for domestic hot water. The cold air generated during heating can be used for dehumidification, especially in the humid season. It can also realize the combined utilization of electric energy and solar energy.

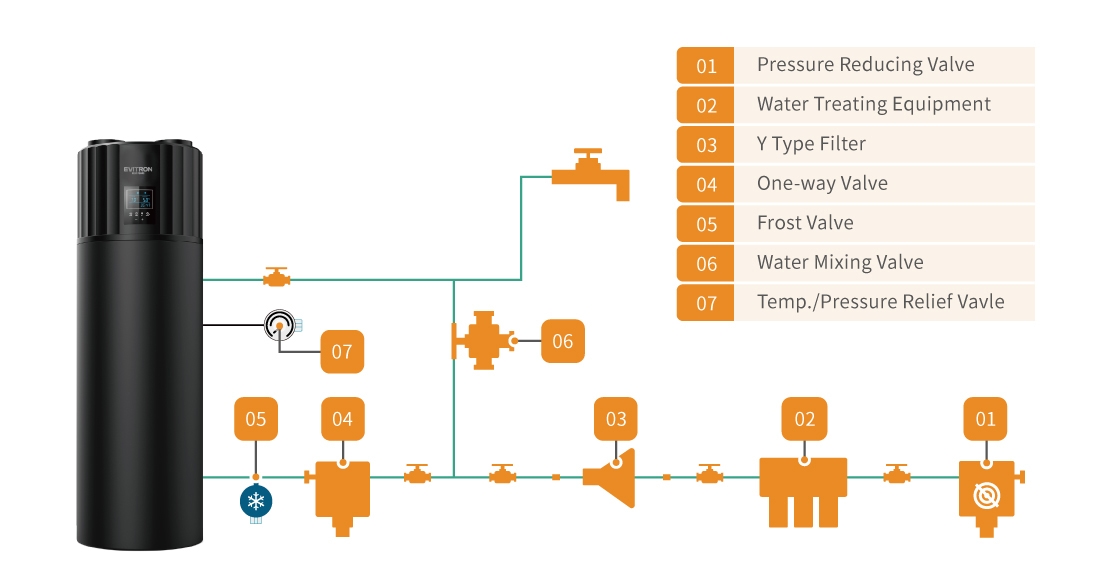

● Installation Diagram

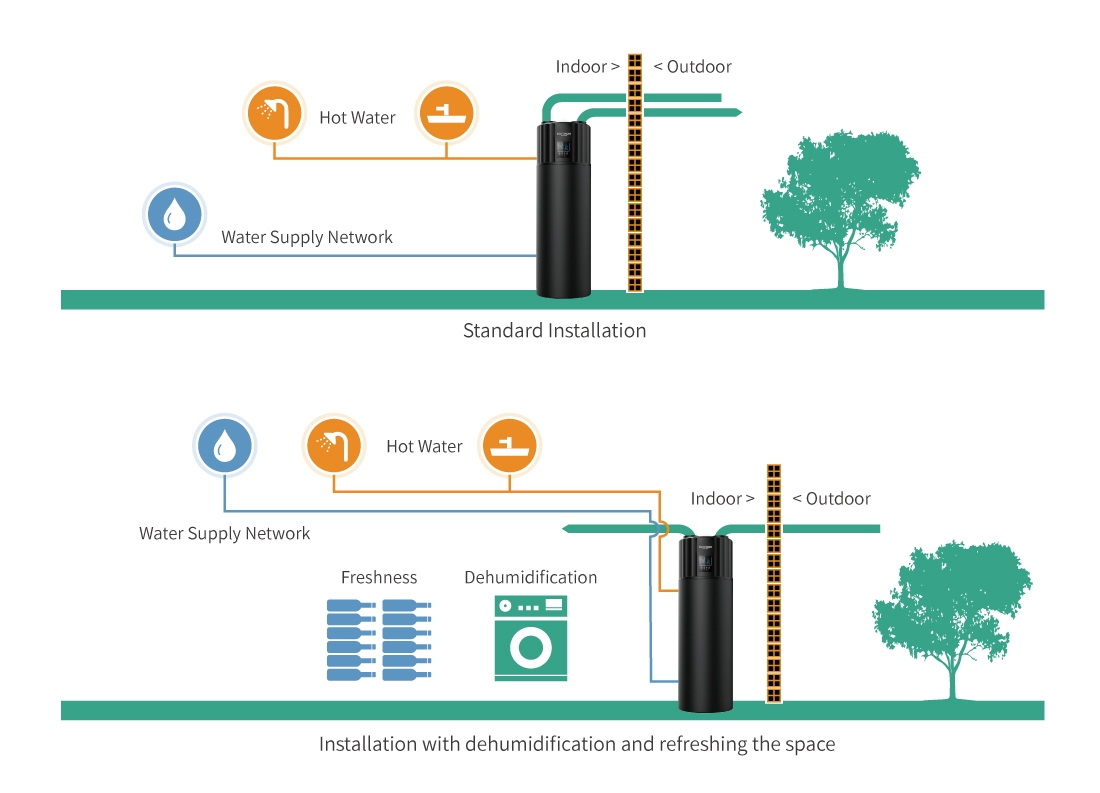

● Installation Sketch Map
| Model: NE-F | WH-HSWWK150 | WH-HSWWK200S | WH-HSWWK250 | WH-HSWWK300S |
| *Test Condition: Ambient Temperature: (DB/WB) 20°C / 15°C; Water Temperature from 15°C to 70°C | ||||
| Rated Heating Capacity (kW) | 1.8 | 1.8 | 2.42 | 2.42 |
| Consumed Power (kW) | 0.47 | 0.47 | 0.62 | 0.62 |
| COP | 3.83 | 3.83 | 3.88 | 3.88 |
| Hot Water Volume (L/h) | 39 | 39 | 52 | 52 |
| Operation Range (℃) | -7 ~ 45 | |||
| Max. Outlet Water Temperature (℃) | 70 | |||
| Max. Power Input (kW) | 2.69 | 2.69 | 2.89 | 2.89 |
| Max. Running Current (A) | 12.2 | 12.2 | 13.4 | 13.4 |
| Power Supply (V/Ph/Hz) | 220-230V~50Hz | |||
| Wi-Fi Function | Yes | |||
| Electric Heater (kW) | 2 | |||
| Water Pipe Connection | G1/2″ (female) | G3/4″ (female) | ||
| Noise Level at 1m dB(A) | ≤52 | ≤53 | ≤52 | ≤53 |
| Gas Control | EEV | |||
| Refrigerant Type | R134a | |||
| Water Tank Type | Enamel | |||
| Water Tank Volume (L) | 150 | 200 | 250 | 300 |
| Water Proof Level | IPX4 | |||
| Net Dimensions (L/W/H) (mm) | φ570×1521 | φ570×1803 | φ640×1810 | φ640×2020 |
| Solar Coil | No | Yes | No | Yes |
