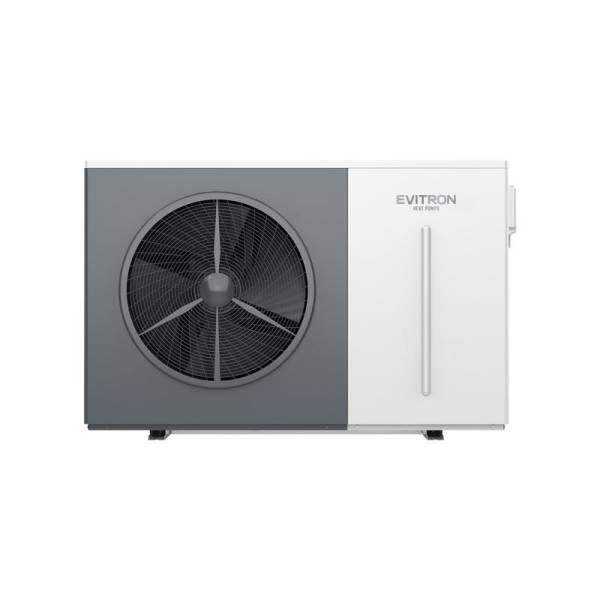

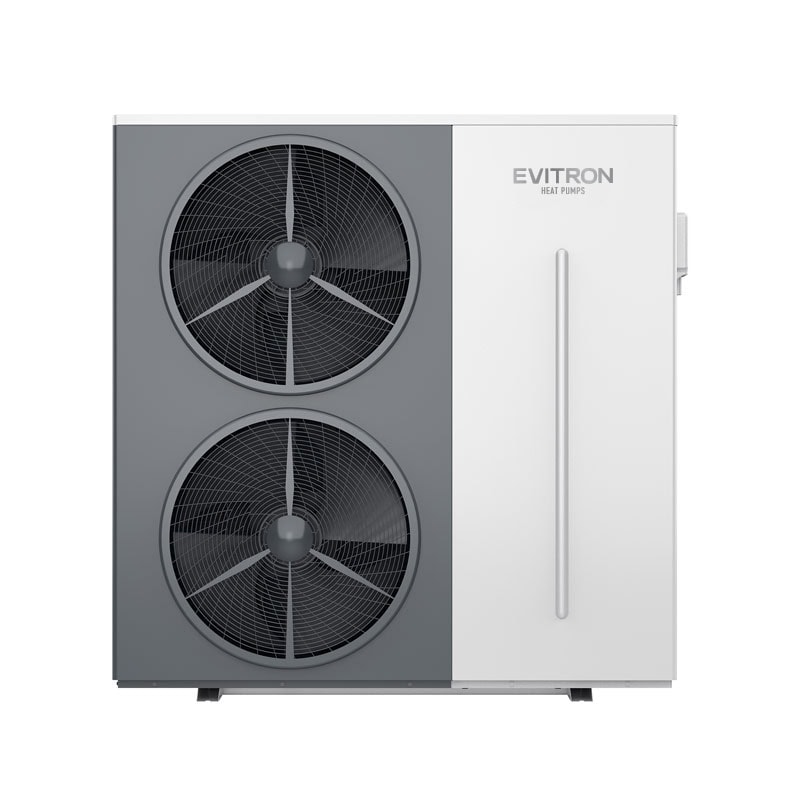

Greenwave Series – R290 Inverter Heating & Cooling Heat Pump

Using R290 as the refrigerant, the #SunglowSeries heat pump shows higher energy efficiency, even working in low temperatures, but produces zero pollution, being a green solution for heating, cooling and hot water.

Category: Product ID: 26823

Description



● Refrigerant

EVITRON Sunglow Series heat pump uses the R290 eco-friendly refrigerant whose GWP is only 3 and helps curb global warming. The heat pump with R290 reaches higher efficiency than those with other refrigerants.

● Energy Label

Complying with ErP directives, Sunglow Series proves itself with powerful capability and attains the A+++ energy label, which meets users’ needs for low energy bills.

● Low Noise

EVITRON devotes to creating a pretty quiet running environment for the user through multiple noise reduction measures.

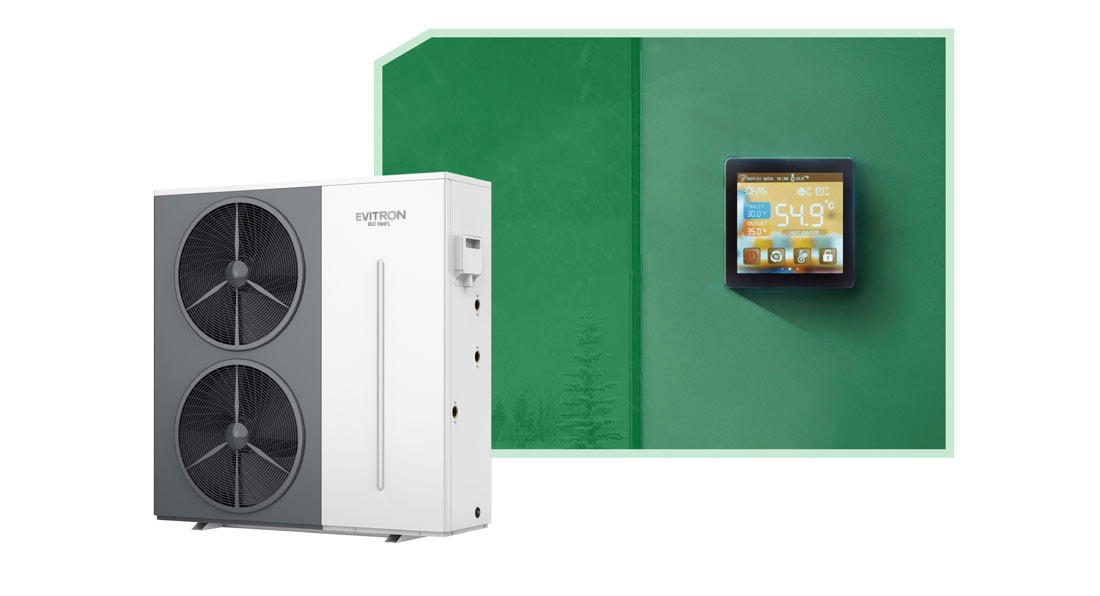

● Colored Wire Controller

EVITRON R290 Heat pumps utilize an intelligent color LCD display with high definition interface and powerful functions, which is very friendly and helpful for users to view and control.

● Wi-Fi Function

Connect the Smartlife App to check the realtime running status, historical records and control the heat pump remotely.

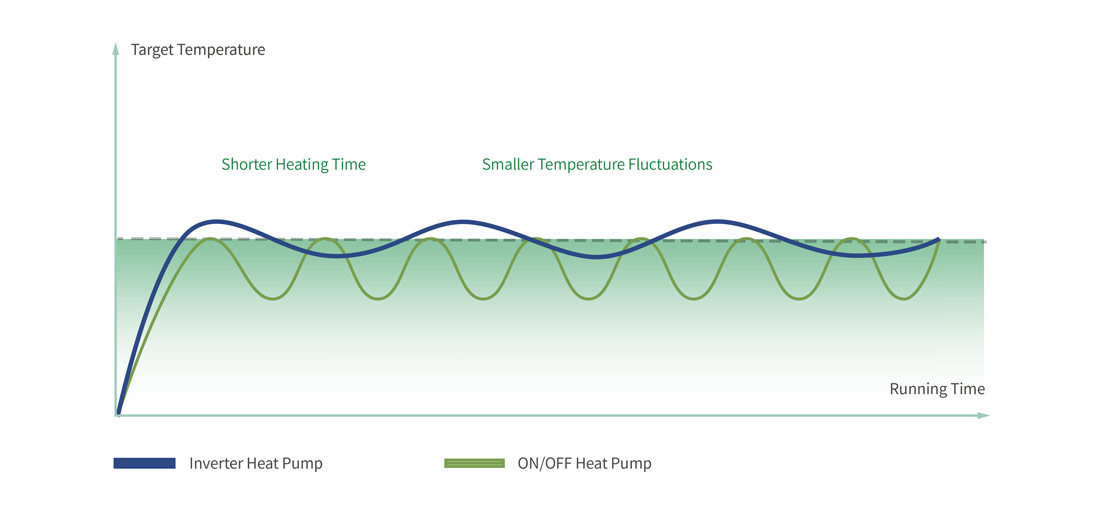

● Full DC Inverter Technology

The Sunglow Series adopts full DC inverter technology, which can automatically adjust the frequency according to the ambient temperature to achieve a more constant temperature and bring users a quite comfortable experience at home.

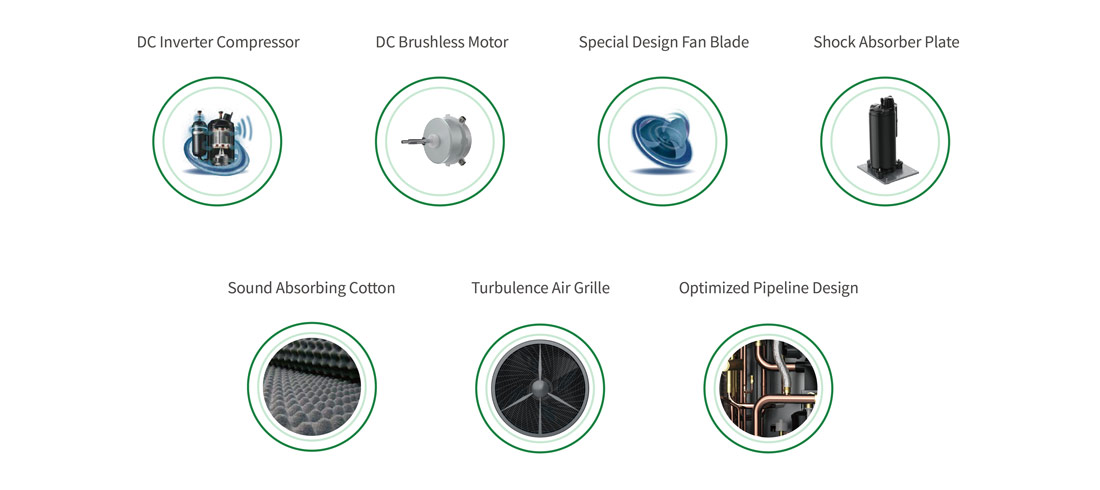

● Components

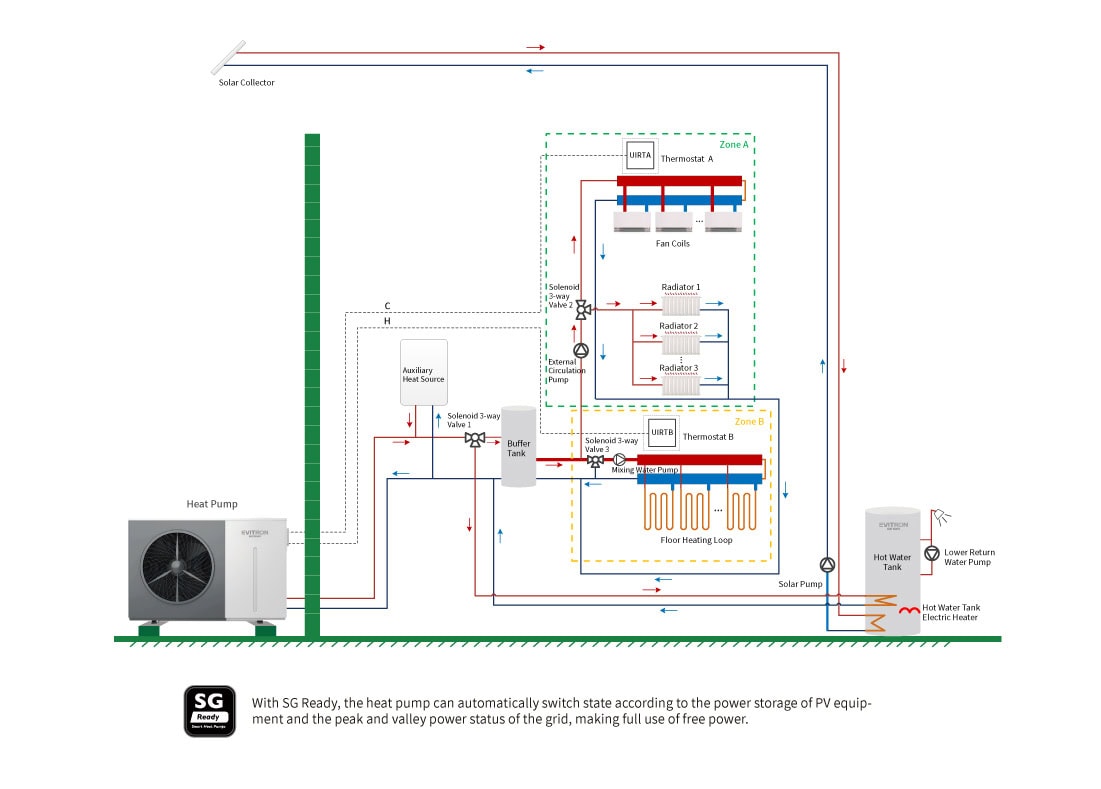

● Whole-house Installation Sketch

The Sunglow Series heat pump allows the interlock with auxiliary heat sources to provide heating, cooling, and hot water for the house. With the Smart Grid control function, the unit can automatically switch states to make full use of idle power, further saving electricity,  according to the power storage of photovoltaics and the power status of the grid. Additionally, users can access a room thermostat to control the switch of the host unit and realize precise zone control.

Parameters

Model: NE-FWH-GW04LE5WH-GW06LE5WH-GW09LE5WH-GW13LE5
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C.
Heating Capacity (kW)1.50~4.402.00~6.003.50~8.814.50~12.74
Power Input (kW)0.25~0.960.30~1.310.58~1.890.75~2.82
COP6.00~4.586.00~4.586.00~4.656.00~4.52
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C.
Heating Capacity (kW)1.30~4.001.80~5.403.15~7.983.90~11.25
Power Input (kW)0.28~1.290.39~1.740.68~2.550.85~3.66
COP4.63~3.104.63~3.104.63~3.134.59~3.07
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.
Cooling Capacity (kW)1.00~3.001.20~4.001.53~5.962.93~8.87
Power Input (kW)0.21~1.030.26~1.380.33~2.110.63~3.26
EER4.76~2.914.62~2.904.64~2.824.65~2.72
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C
Heating Capacity (kW)5.46.69.3313.9
Power Input (kW)1.241.522.143.28
Hot Water Current Input Range (A)5.456.669.814.36
EER4.354.354.354.24
Max. Power Input (kW)22.845
Max. Running Current (A)10.314.318.322.9
Max. Outlet Water Temp. (°C)75

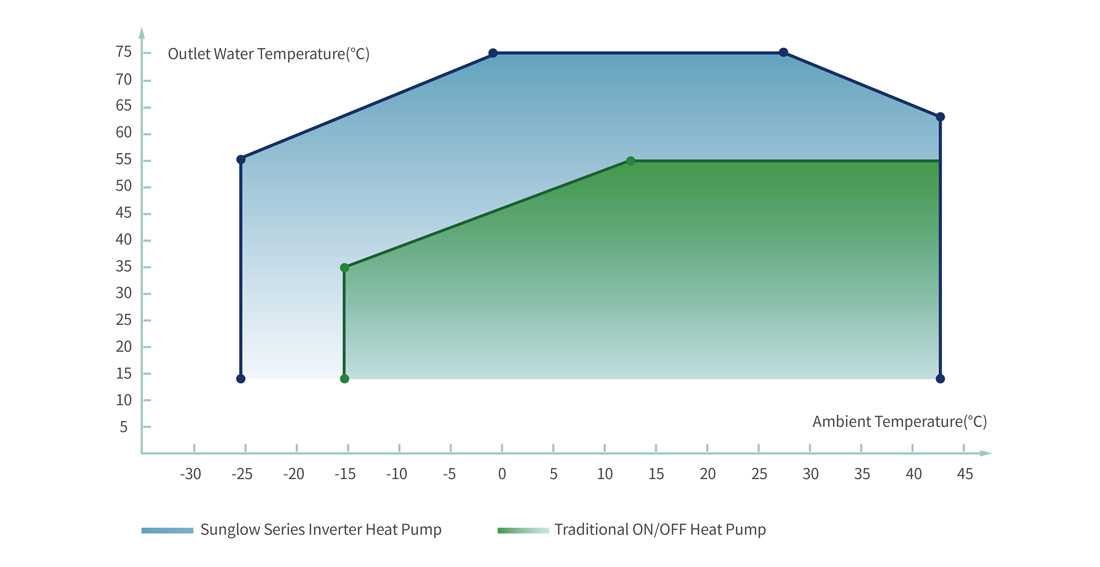

Operation Range (°C)-25~43
Power Supply220~240V~/50Hz
Rated Water Flow (m³/h)0.761.031.52.19
Compressor BrandHIGHLY
Circulating PumpBuilt-In
Expansion Tank (L)2222
CO2 Equivalent (Ton)0.00150.00150.00230.0029
ErP Level (35°C)A+++
ErP Level (55°C)A++
Refrigerant TypeR290
Sound Pressure Level dB(A) at 1m43~5343~5343~5443~55
Water Pipe Connection (inch)G1 1/4″
Water Proof ClassIPX4
Electricity Shock ProofI
Net Dimensions (L×W×H) (mm)1180 x 440 x 7101180 x 440 x 7101263 x 440 x 8751263 x 440 x 875

Parameters 2

Model: NE-FWH-GW13LE8WH-GW18LE8WH-GW20LE8
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 30°C/35°C.
Heating Capacity (kW)4.50~12.746.30~18.006.70~20.36
Power Input (kW)0.75~2.821.05~3.921.12~4.62
COP6.00~4.526.00~4.595.98~4.40
[Space Heating] Ambient Temp. (DB/WB): 7°C/6°C, Water Temp. (Inlet/Outlet): 50°C/55°C.
Heating Capacity (kW)3.90~11.255.70~16.205.80~18.48
Power Input (kW)0.85~3.661.24~5.581.26~6.29
COP4.59~3.074.60~2.904.60~2.94
[Space Cooling] Ambient Temp. (DB/WB): 35°C / -, Water Temp. (Inlet/Outlet): 12°C/7°C.
Cooling Capacity (kW)2.93~8.874.00~13.504.40~14.40
Power Input (kW)0.63~3.260.86~4.500.95~4.69
EER4.65~2.724.63~3.004.63~3.08
[Hot Water] Ambient Temp. (DB/WB): 20°C/15°C, Water Temp. from 15°C to 55°C.
Heating Capacity (kW)13.919.822.69
Power Input (kW)3.284.605.19
Hot Water Current Input Range(A)5.367.517.95
EER4.244.304.37
Max. Power Input (kW)56.56.8
Max. Running Current (A)8.7011.311.6
Max. Outlet Water Temp. (°C)75
Operation Range (°C)-25~43
Power Supply380~415V/3N~/ 50Hz
Rated Water Flow (m³/h)2.193.103.44
Compressor BrandHIGHLY
Circulating PumpBuilt-In
Expansion Tank (L)255
CO2 Equivalent (Ton)0.00290.00490.0049
ErP Level (35°C)A+++
ErP Level (55°C)A++
Refrigerant TypeR290
Sound Pressure Level dB(A) at 1m43~5544~5644~56
Water Pipe Connection (inch)G1 1/4″
Water Proof ClassIPX4
Electricity Shock ProofI
Net Dimensions (L×W×H) (mm)1263 x 440 x 8751263 x 440 x 13751263 x 440 x 1375
